Product Range

5 Key Advantages That Set waveco® Apart
waveco® Redefines Food Preparation With These Benefits

Extended Shelf Life — Keep products fresh for longer.

Time Savings — Streamline processes and boost productivity.

Greater Softness — Achieve superior texture in every dish.

Reduced Energy Costs — Save resources while maintaining performance.

Lower Food Costs — Minimize waste and maximize value.

With a 40% performance improvement powered by advanced US electrical boards, waveco® is also Industry 4.0 ready. Integrating it into your kitchen can qualify you for a tax credit relief of up to 74%*. Upgrade your kitchen with the innovation of waveco®.

waveco®: Unmatched Performance
and Connectivity

Experience the next level of performance with waveco®. Upgraded with US electronic cards and ultra-high-performance sonotrodes, this advanced technology boosts efficiency by 40%, offering exceptional results that enhance product consistency and customer satisfaction. waveco® is now more competitive, reliable, and capable than ever.

Stay Connected, Anytime, Anywhere

With integrated internet connectivity, you can access technical support whenever needed. If there are any issues or uncertainties, help is just a click away.

waveco® IS INDUSTRY4.0 READY

connect to the network through:

  • Lan interface: (standard);
  • Wi-Fi Interface (Optional);
  • GSM connection interface via SIM (Optional).

Each machine has a dedicated VPN profile for direct access, allowing real-time monitoring and remote control via a web app with a mirror system. Whether in the kitchen or away, you’ll always have complete control over your waveco®.

waveco ® Models

Trolley Upright Cart Model

Capacity: 50 Liters (~13,21 U.S. Gal)

Our largest model mounted on casters makes it convenient for relocation and is ideal for large banquet or production facilities. This unit also features an automated hydraulic loading and draining system for complete programmable use.

INDUSTRIAL MODELS – XL – XXL
Our waveco technology is applicable for all types of sizes and designs. We can accommodate industrial requirements with our
XL – 27Gal, and XXL 53Gal capacity and larger if required.

Countertop Model

Capacity: 30 Liter  (~7,93 U.S. Gal)

This counter top unit is compact in design and suitable for medium kitchens and productions. Fully automated in
filling the tank and draining with a cold-water hose connection and flexible drainage pipe.

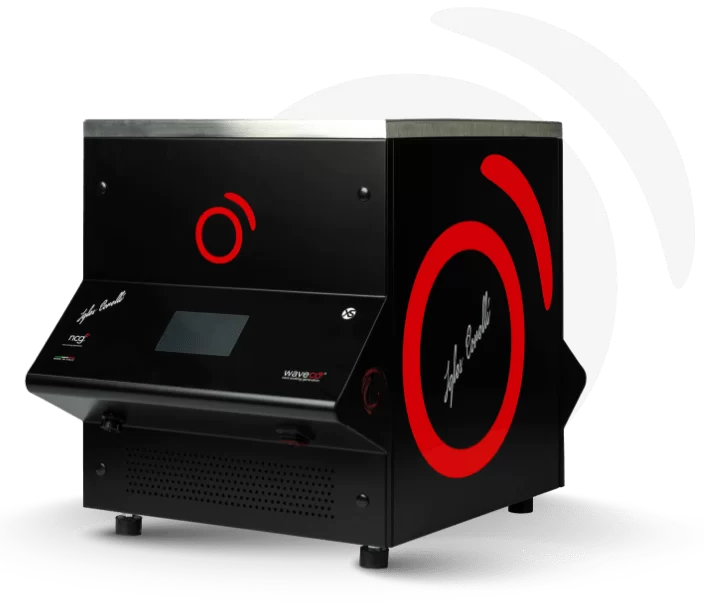

XS Counter Top Model

Capacity: 20 Liter (~5.28 U.S. Gal)

Our smallest counter-top unit is typically used for demonstrations small production & applications. Fully automated in filling the tank and draining with a cold-water hose connection and flexible drainage pipe.

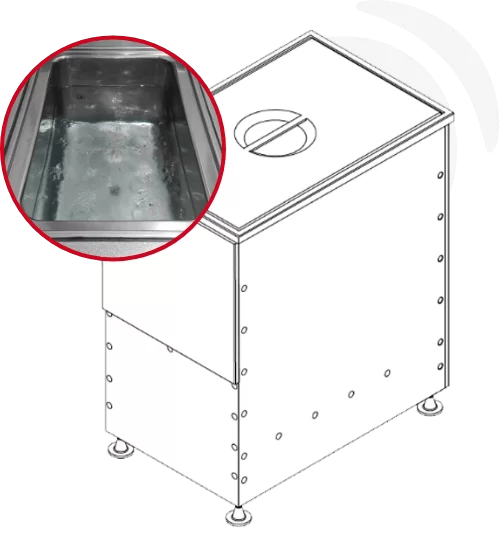

Drop-in Counter Model

Capacity: 50 Liter (~13.21 U.S. Gal)

Our stationary build-in unit is a permanent installation in professional kitchens in the assigned counter compatible with all work types of work surfaces. NCG provides complete specifications and assists with installation.

Future waveco® Models

XS ONE Countertop (NO LTC)

Capacity: 20l (~7,93 U.S. gal)

XL Industrial Kitchen Equipment

Capacity: 500 Liter (~132 U.S. Gal)

XXL Industrial Kitchen Equipment

Capacity: 1000 Liter (~264 U.S. Gal)

CURIOUS TO SEE
waveco ® IN ACTION?

Schedule a live demo at one of our laboratories in Rome, Milan, Teramo, or London and experience the power of waveco® firsthand. Discover how it can transform your kitchen with innovative efficiency.

CURIOUS TO KNOW MORE ?

Enter your email address to download our brochure.

Scroll to Top

Model Trolley Technical Specifications

DIMENSIONAL CHARACTERISTICS:
Max length : 400 mm
Max depth : 710 mm
Max height : 895 mm
Weight : 60 kg excluding packaging

HYDRAULIC FEATURES:
Maximum capacity
 : 50 l – AISI 316 stainless steel tank Water loading/unloading system: Positioned on the left side, for water loading a 1⁄2” threaded pipe, 30 cm long, from which it is then possible to obtain the inlet to the water network, for unloading a 1⁄2” threaded pipe, 30 cm long, from which it is possible to obtain your own outlet to the water network.
Hydraulic system : Flexible hydraulic pipes in AISI 304 stainless steel
Hydraulic safety system : Optoelectric detector of internal water level in the tank.

POWER AND SUPPLY:
Ultrasonic power: MAX 1.0 KW
Resistance power: MAX 2.23 KW
Nominal power: MAX 3.4 KW
Power supply : 230 V 50 Hz – 100 V 50/60Hz – 115V 50/60Hz

Benchtop model Technical specifications

DIMENSIONAL CHARACTERISTICS:
Max length
 : 550 mm
Max depth : 770 mm
Max height : 450 mm
(adjustable feet included and +/- 5 mm adjustment)
Weight : 38 kg excluding packaging

HYDRAULIC FEATURES:
Maximum capacity
 : 30 ltr AISI 316 stainless steel tank
Water loading/unloading system : Positioned on the left side, for water loading a 1⁄2” threaded pipe, 30 cm long, from which it is then possible to obtain the inlet to the water network, for unloading a 90° hydraulic connection threaded 1⁄2” 30 cm long, from which it is possible to obtain your own outlet to the water network.
Hydraulic system : Flexible hydraulic pipes in AISI 304 stainless steel
Hydraulic safety system : Optoelectric detector of internal water level in the tank.

POWER AND SUPPLY:
Ultrasonic power : MAX 0.8 KW
Resistance power: MAX 1.6 KW
Nominal power: MAX 3.0 KW
Power supply : 230 V 50/60 Hz – 100 V 50/60Hz – 115V 50/60Hz

Model XS Technical specifications

DIMENSIONAL CHARACTERISTICS:
Max length: 400 mm
Max depth: 600 mm
Max height: 450 mm
Weight: 30 kg excluding packaging

HYDRAULIC FEATURES:
Maximum capacity:
 20 lt AISI 316 stainless steel tank
Water drainage system : Positioned on the left side, with hydraulic tap from which it is possible to insert a tube for its exit to the water network.
Hydraulic system: Flexible hydraulic pipes in AISI 304 stainless steel
Hydraulic safety system: Optoelectric water level detector inside the tank.

POWER AND SUPPLY:
Ultrasonic power: MAX 0.5 KW
Resistance power: MAX 0.9 KW
Nominal power: MAX 2.0 KW
Power supply: 230 V 50/60 Hz – 100 V 50/60Hz – 115V 50/60Hz

Built-in model Technical specifications

DIMENSIONAL CHARACTERISTICS:
Max length: 400 mm
Depth : 600 mm
Height : 685 mm (adjustable feet excluded)
Weight : 60 kg excluding packaging

HYDRAULIC FEATURES:
Maximum capacity
 : 50 l – AISI 316 stainless steel tank.
Drain system : automatic with water loading and unloading levelling with taps compatible with all standard pipes.
Hydraulic system : Flexible hydraulic pipes in AISI 304 stainless steel.
Hydraulic safety system : Optoelectric water level detector inside the tank.

POWER AND SUPPLY:
Ultrasonic power: MAX 1 KW
Resistance power: MAX 5 KW
Nominal power : MAX 3.3 KW
Power supply : 220 V 50 Hz – 100 V 50/60Hz – 115V 50/60Hz

* the type of plug must be specified when ordering
